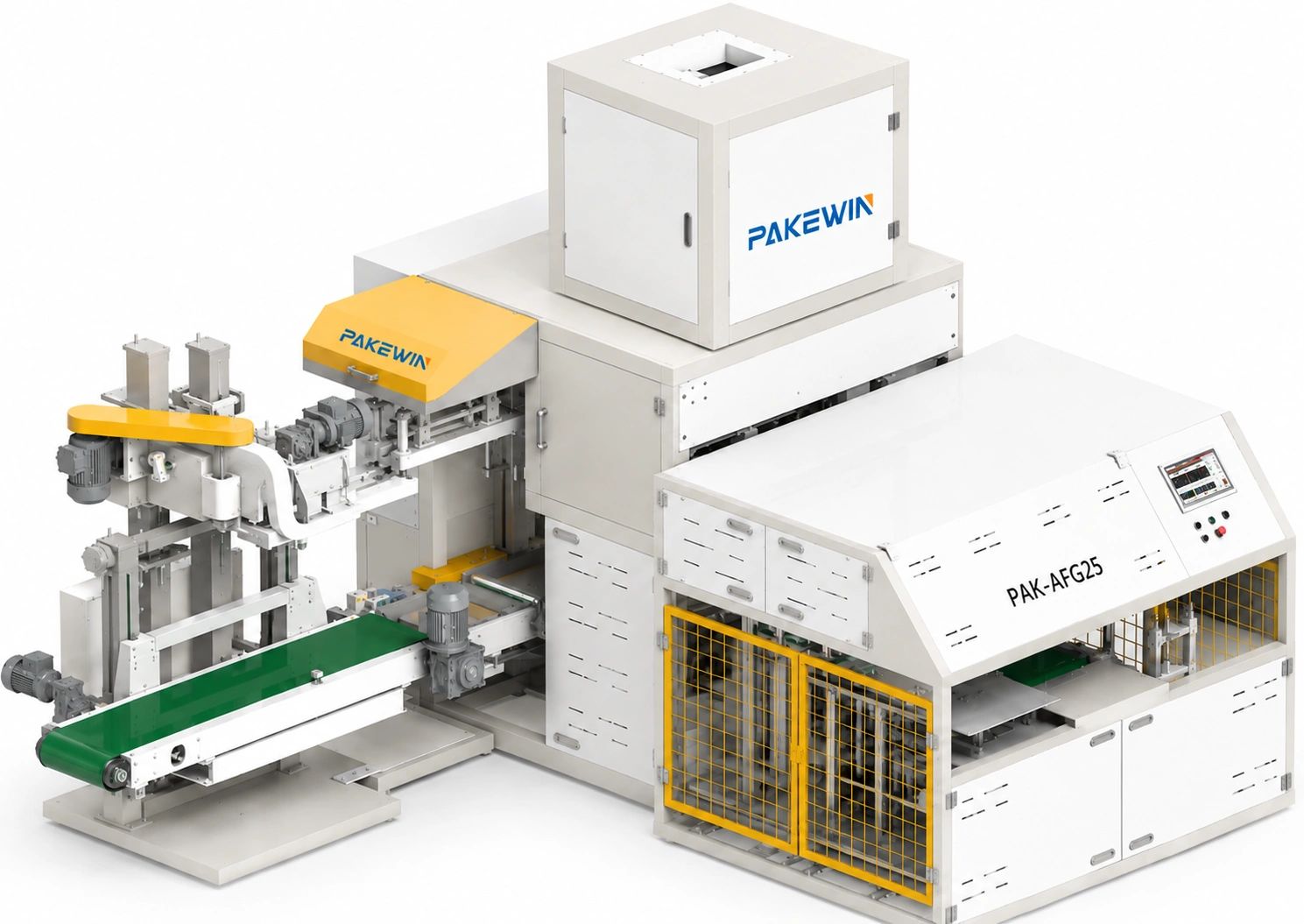

Fully auto PP packing machine

Features

1. Continuous automatic operation

2. Intelligent servo control

3. Stable and reliable performance

4. High-precision weighing

Technical parameters

Packaging Range: 5–25 kg

Capacity: 600–800 bags/hour

Power:  3P5W,380V.50Hz, 7.5 kW

Air:0.6–0.8 MPa,35 m³/h

Dimension(L*W*H): 3760*3168*2773 mm

Vertical Form Fill Seal Machine (VFFs)

Packaging range:0.5-5kg

Capacity：30-70bags/min(for empty bag)

Bag type：Pillow bag, Gusseted bag

Film Pulling belt：Double -belt pulling film

Thickness of film：0.04-0.09mm

Features

1. Fully Automatic Packing System

2. Stable Sealing & Smooth Operation

3. High-Speed Packing with Easy Control

4. Compact Design for Continuous Production

Technical Parameters

Packaging Range: 2.5–10 kg

Capacity:800–900 bags/hour

Power: AC380V / 50Hz,4 kW

Air: 0.5–0.7 MPa,10 m³/h

Dimension: 2389 × 1640 × 2608mm

Features

1. Fully automatic packing system.

2. Stable servo control operation.

3. Accurate and reliable bag handling.

4. Suitable for rice and granular materials.

Technical parameter

Packaging Range:25–50kg

Capacity: 500-600bags/hour

Power: 3P5W,380V.50Hz,6kW

Air:0.5-0.6 MPa

Dimension(L*W*H): 4430 × 3800 × 3750mm

Features

1. Smart Rotary Packing for High-Speed Output

2. Precision Weighing with Stable Filling

3. Fully Auto System with Easy Control

4. Heavy-Duty Design for Continuous Use

Technical parameter

Packing Range:25–50kg

Capacity: 600bags/hour

Power: 3P+N+PE,380V.50Hz,22kW

Air: 0.6 MPa

Dimension: 5144 × 3864 × 5637 mm
